The Hercules Hi-Shear Viscometer system measures the viscosity and other flow properties of dispersions

and coatings that are subjected to varying degrees of shear. Each viscometer draws the classic "Hercules

Rheogram" and reports data.

The "Hercules Rheogram" has been used for over 50 years as a reliable way to predict flow characteristics in

pigment slurries and coating colors.

​

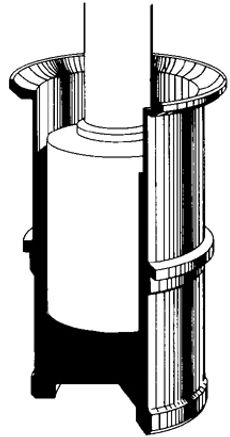

The principal of the Hercules Hi-Shear Viscometer is based on the Searle method of measurement where a

cylinder (bob) suspended in a liquid sample starts from rest and begins spinning to a preset rotational speed

(shear rate). The spinning effect of the bob is resisted (shear stress) by the liquid surrounding it. This viscous

drag causes the adjoining cup to rotate against a known resistance thus producing a torque value. The viscosity

of the liquid is calculated from the torque measurement at the maximum shear rate. In addition to reporting

viscosity, this instrument produces a rheogram whose shape has been used to predict flow performance of a

material as it reacts to changes in shear rate. The shape of this curve indicates if a material is shear thinning or

shear thickening as the shear rate changes over time. This feature separates the Hercules Hi-Shear Viscometer

from other instruments that only provide single-point measurements under low shear. It produces a continuous

flow of results reflecting sample reaction to increasing and decreasing shear conditions over time.



Uses for the Hercules Viscometer

• Predict coating runnability

• Incoming raw material certification, particle size distribution, pigment dilatancy, molecular chain length, and emulsion viscosity.

• Determine optimum dispersant demand.

• Relate viscosity to percent solids, pigment blends, and coat weight.


Areas of Application

Kaltec's Hercules Hi-Shear Viscometers simulate process conditions for solving production and product development problems, they have been used to test materials including, but not limited to the following:

​

• Water-Borne Papers

• Paper Board Coatings

• Mineral Slurries

• Adhesives

• Magnetic Particle Dispersions

• Resins



Model DV-10

The Hercules Model DV-10 is equally suited to generate precise, reproducible
results demanded by R&D standards and is durable to withstand the harsh
treatment of a process control laboratory.

Product Development
The software program, WinShear32, allows an operator the ability to determine
those variables that can assist in the development of coatings which include:
apparent viscosity, shear stress, leveling index, Reynolds number, mechanical
energy and kinematic viscosity. One of the most outstanding features of the
software is the ability to convert the standard "rpm versus torque" graph that
shows the degree of thixotropy of a sample into one of another 45 relationships.
It also allows the operator to modify the test period from 5 seconds to more than
15 minutes. Two common comparisons are "shear rate vs. viscosity" and
"viscosity vs. time." Another handy feature is the overlay comparison allowing
multiple sample results to be compared on the same graph.

Process Control
Although the computational capabilities of the model DV-10 have been expanded
over previous models, its feature of removing operator influence from test results
makes it an ideal instrument to use when a high degree of reproducibility is
required. The software can be programmed to establish the testing format of
frequent evaluations. This reduces the number of procedural steps and allows
an operator to perform many tests within a shorter time period. In combination
with its rugged features, precision, reproducibility, and quick-cup interchange, the
model DV-10 fits well in an industrial environment.



Testing Standard

The officially recognized test procedure of evaluating the viscosity of slurry
pigments in North America as outlined by TAPPI (Technical Association of the
Pulp and Paper Industry) is test method T-648. Hercules Hi-Shear Viscometer
procedures strictly adhere to the TAPPI standard in evaluating pigments and
coatings. The test is also recognized and practiced in many other regions of the
world.



​

​

Official TAPPI Test Method

​

8800 RPM Modification (Not included with standard DV-10)

​The upgrade boosts the shear rate of the DV‐10 an additional 33%.
Includes: 1 F2.5 Bob; and Modification to viscometer and software.
